Sheet Metal Bending | Brake Metal | Sheet Metal Forming


Sheet Metal Bending | Brake Metal | Sheet Metal Forming

Press Brake Metal Bending  Sheet Metal Brake - Metal Froming

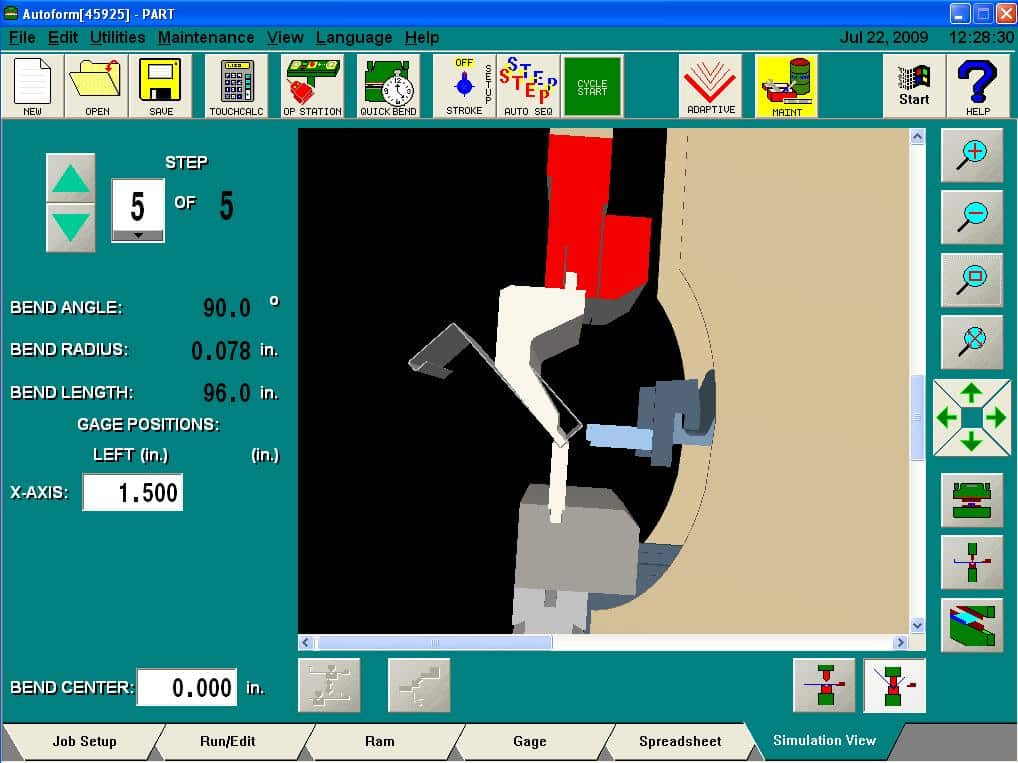

Our CNC Press Brakes can reproduce complex multiple bend caps, copings, trim, and drip.  The brakes adjust after every bend both by dimension and angle to create consistent parts.  This eliminates the time needed to mark scribes and measure each part, and also eliminates material handling time since the entire part can be formed at once.  True angles are obtained no matter what the part length via CNC adaptive forming technology and Auto Crown capability.
CNC Press Brake Trim Gooseneck Metal Froming
We have an extensive selection of over 100 dies to correctly brake your metal.  We have Vees, Goosenecks, Flattening, Offsets, Radiused, Hemming, and Specialty dies to create specific bends.
In addition to these brakes we also have a smaller hydraulic press brake solely set up for 1/2" hems.  This enables us to create tight consistent hems for aesthetics and safety.  This also eliminates the need for repetitive die changes.
We also have a 10' hand brake for small piecework jobs where programming is not necessary or economical.
Machine List - Description
  • Piranha -  175 Ton Hydraulic - 12' bed.  NC Controlled
  • Cincinnati - 90 Ton Hydraulic - 10' bed. CNC Controlled with user PC touch screen interface.  Auto Crown ensures consistent bends throughout part.
  • Roto-Die-  Hydraulic 10' Die  - 20 ga. capacity -  We use this machine to from 1/2" open and closed hems only.
  • Chicago Hand Brake - 10' leaf brake.
  •  (2) 4' Box & pan brakes -
